17 + 23 mm
V13-DR23SL/17
Manufacturer-listed dual-reel system: 17 mm camera and 23 mm self-leveling head; 13-inch display; outer and inner cable reels. Different head sensors and connectors are listed.
Enquire about configuration →13-INCH INSPECTION PLATFORM
V13 Pipe Inspection Camera Series
A professional pipe inspection family with a shared display/control platform and reel design across the variants supplied to us. Select camera configuration according to the pipeline application.
The gallery shows one supplied V13 system and component details. Camera dimensions, reel configuration, cable length and accessory compatibility must be confirmed by model; not all variants shown on the Vicam catalog use identical dual-reel configurations.
Request V13 Specifications →
User-supplied product photos. No videos or manufacturer logo videos embedded.
Configuration guide
Choose a V13 camera configuration
Examples from the Vicam public catalog are shown as source references—not as claims that DrainVista has confirmed stock, OEM permission or permission to sell every model.
23 + 33 mm
V13-DR33/23SL
Manufacturer-listed dual-reel system combining a 23 mm self-leveling camera with a 33 mm pan-tilt camera. Its head features differ; do not assume identical camera specifications.
Enquire about configuration →OTHER SIZES
Additional V13 head options
Other camera-head diameters may be supplied using the confirmed shared V13 platform. Exact SKU names, compatibility and accessory lists still require the supplier's technical matrix.
Request model list →Technical information
Shared equipment & model-specific specifications
Two manufacturer-published V13 dual-reel configurations list a 13-inch IPS display with 1280 × 720 resolution, DVR recording functions, an 8,800 mAh rechargeable lithium battery, and a wireless keyboard. These are source specifications for those named configurations—not a blanket claim for every possible V13 variant.
| Item | V13-DR23SL/17 | V13-DR33/23SL |
|---|---|---|
| Head option | 17 mm + 23 mm self-leveling | 23 mm self-leveling + 33 mm pan-tilt |
| Display | 13-inch IPS, 1280 × 720 | 13-inch IPS, 1280 × 720 |
| Battery (manufacturer listing) | 8,800 mAh | 8,800 mAh |
| Camera sensor | 17 mm: 1.3 MP; 23 mm: 2.0 MP | 23 mm: 2.0 MP; 33 mm: 2.0 MP |
| Cable reel | Dual reels; 7 mm outer / 5.2 mm inner | Dual reels; lengths subject to order |
| Head function | 23 mm self-leveling | 33 mm pan 360°, tilt 180° (manufacturer listing) |
| Available cable lengths | Outer 20–50 m; inner 20–40 m listed | 20–50 m range listed; confirm exact reel set |
| Other V13 configurations | Obtain supplier datasheet before publication and quotation | |
Source: szvicam.com product pages for V13-DR23SL/17 and V13-DR33/23SL. Specification differences are preserved; the listed model codes are supplier references only.
Equipment gallery
Professional field equipment

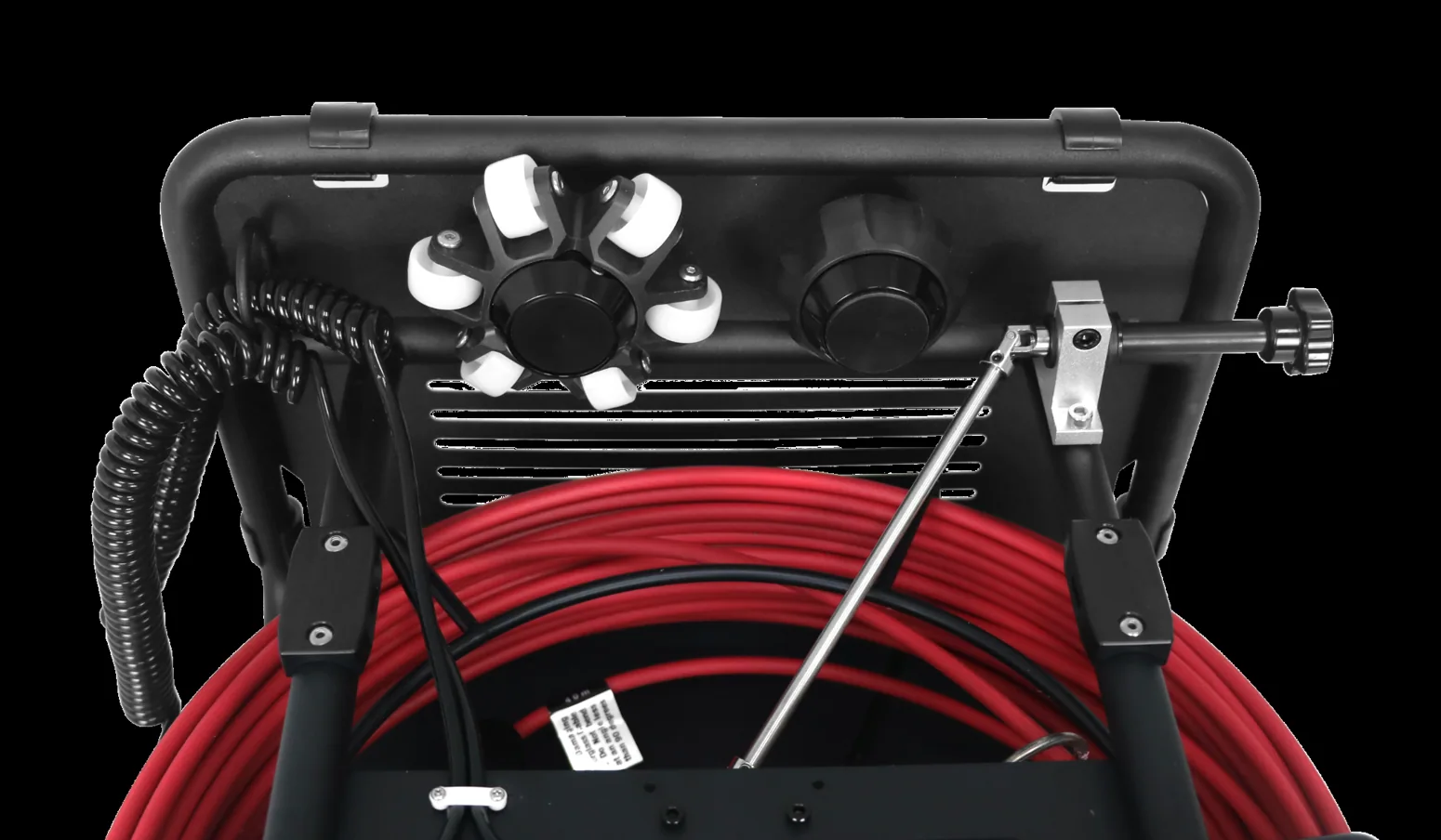

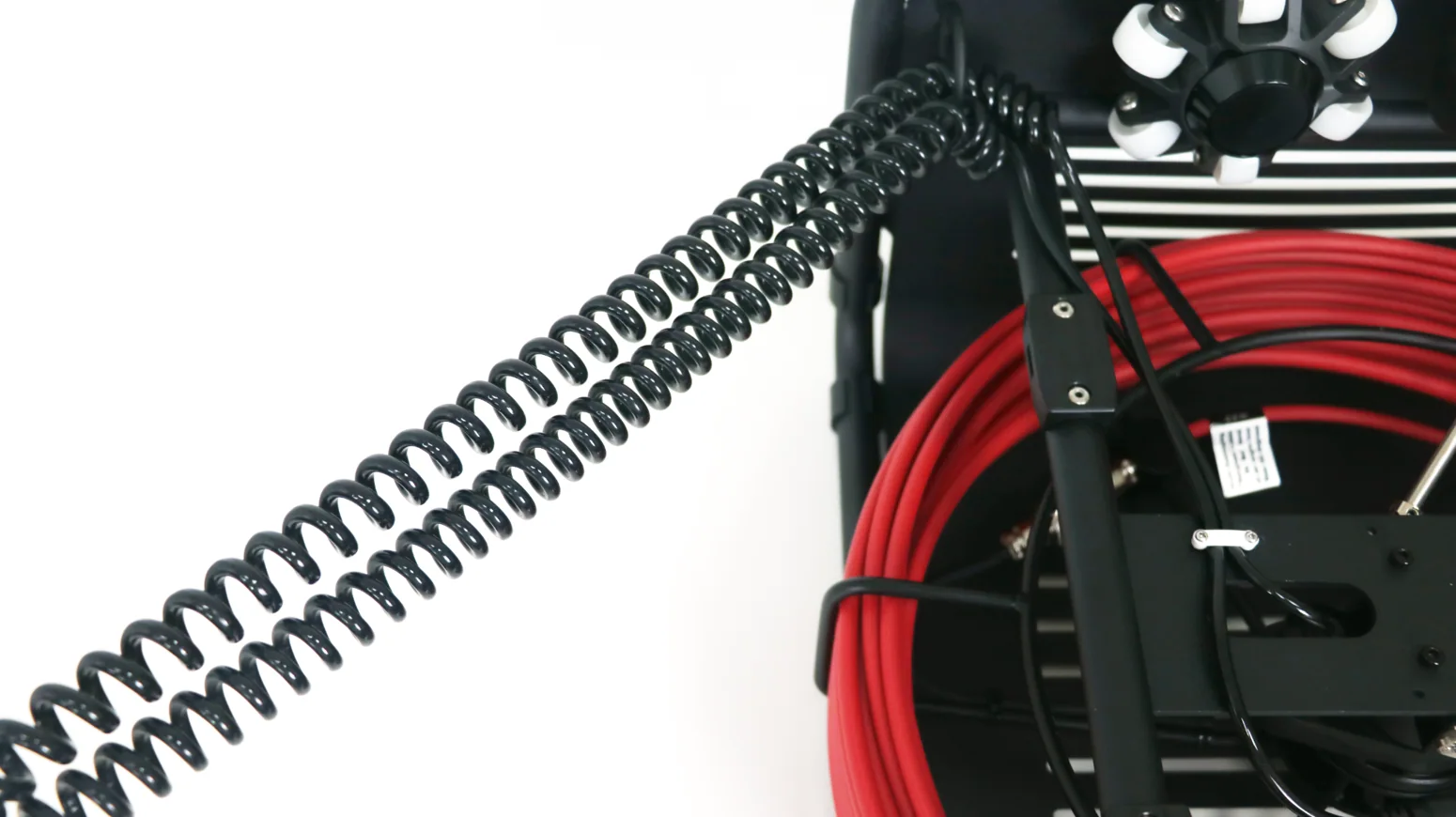

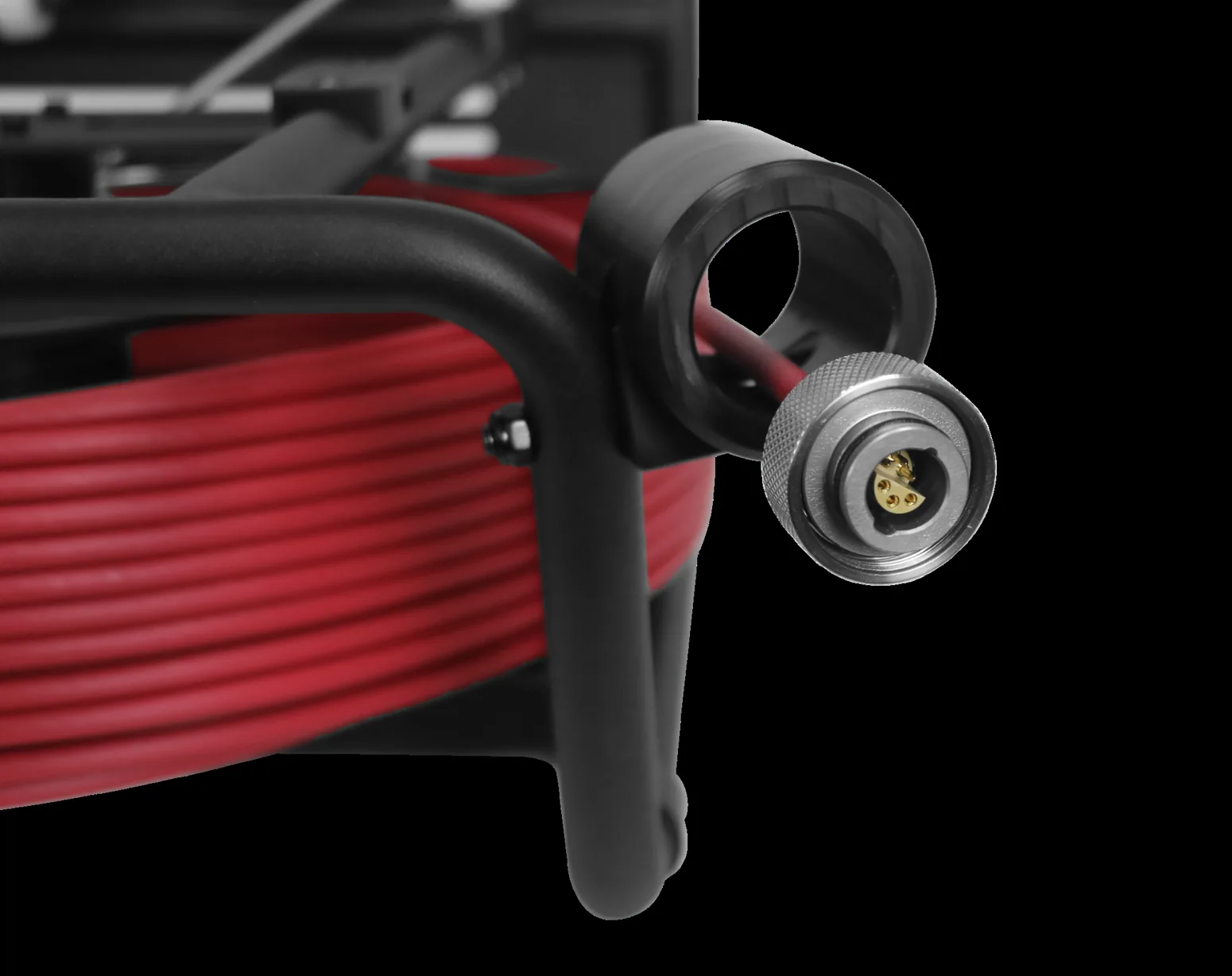

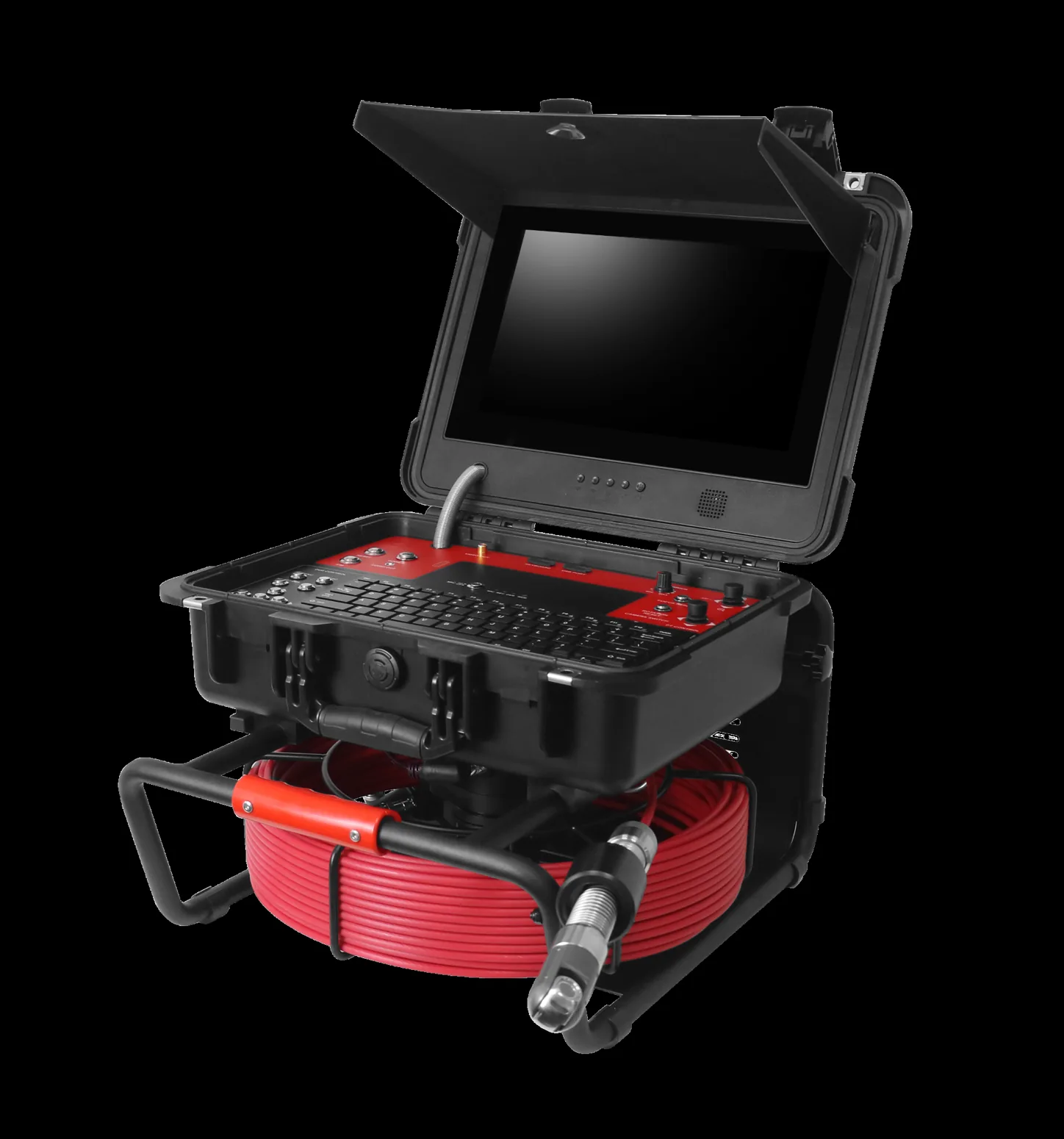

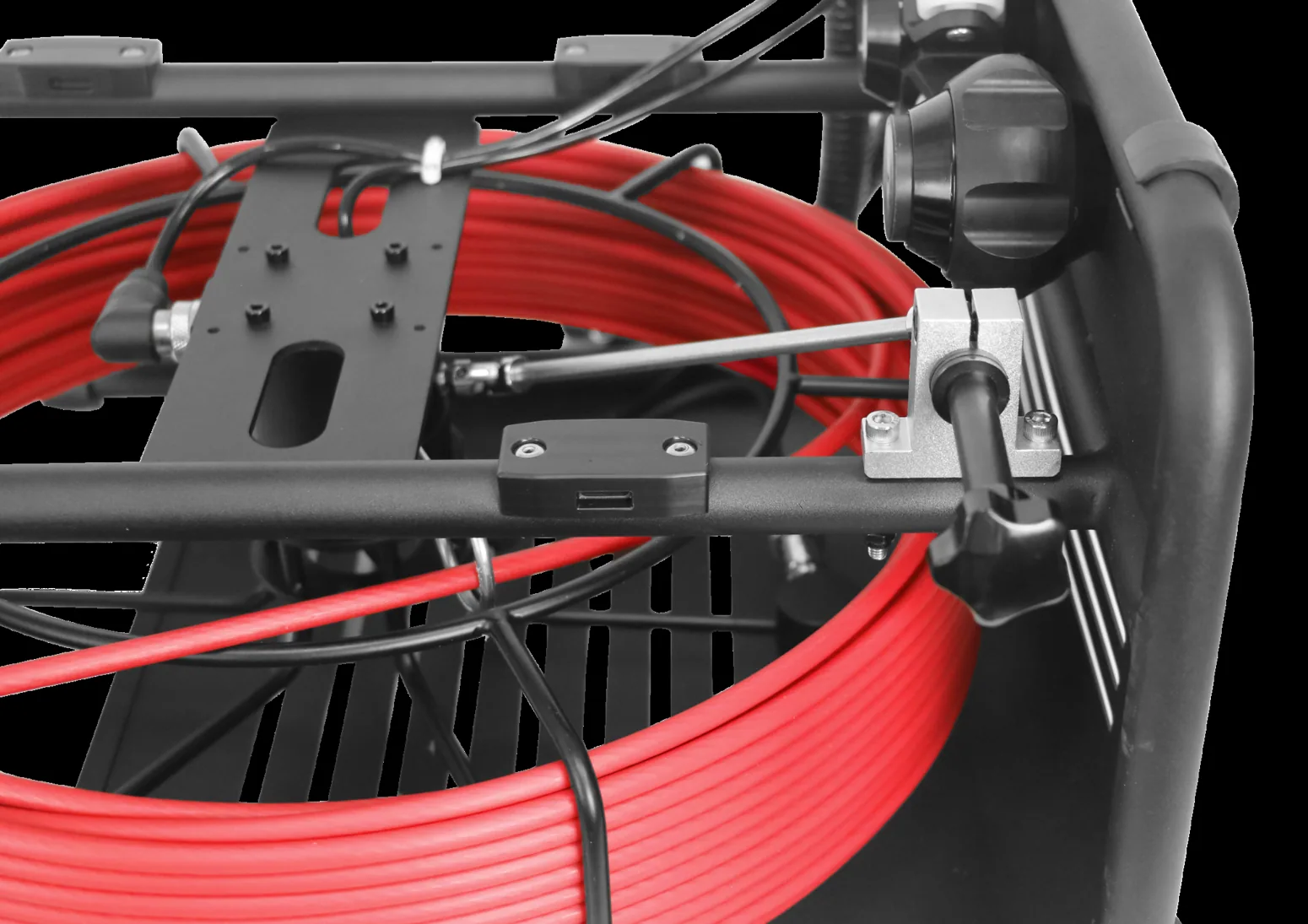

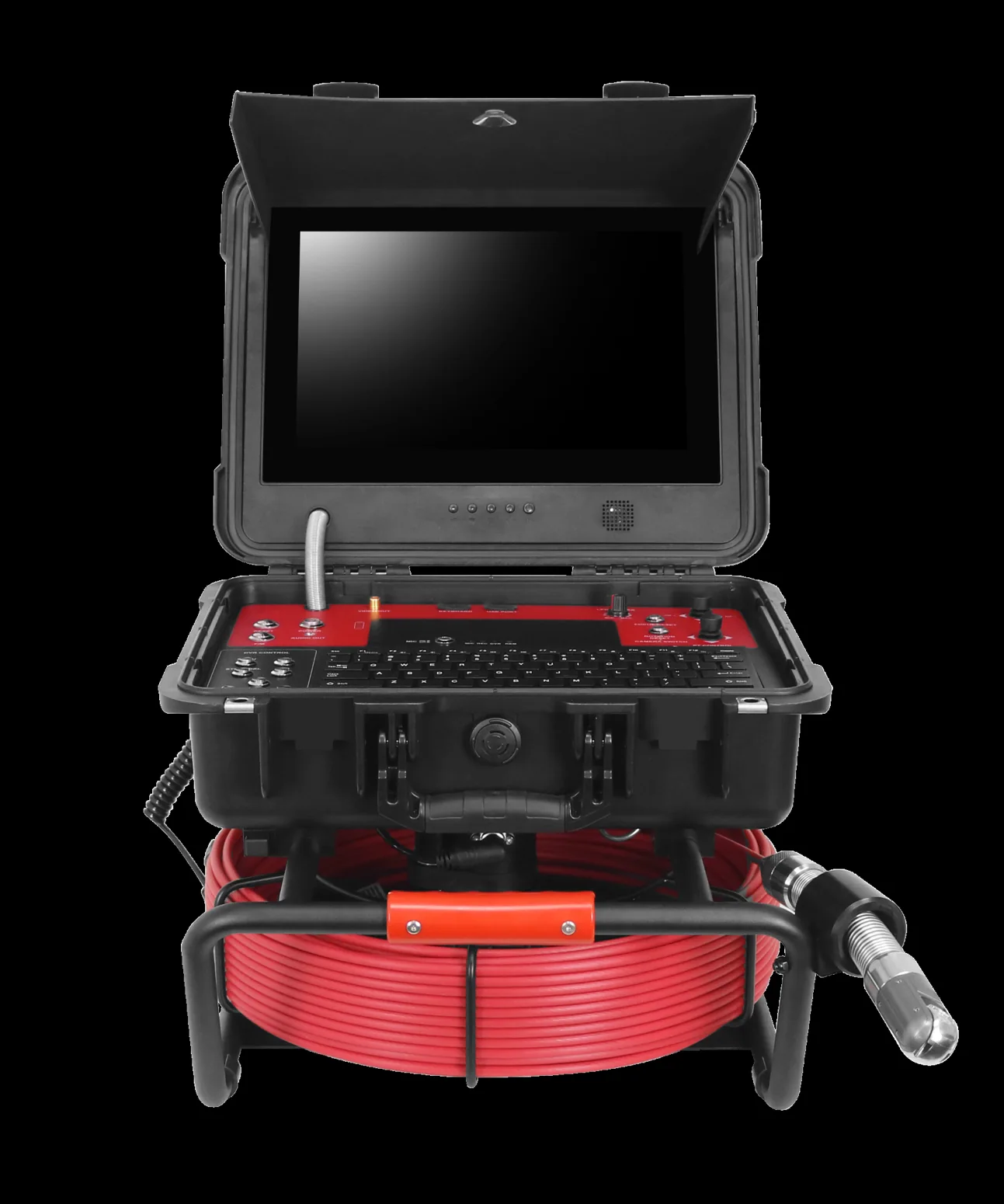

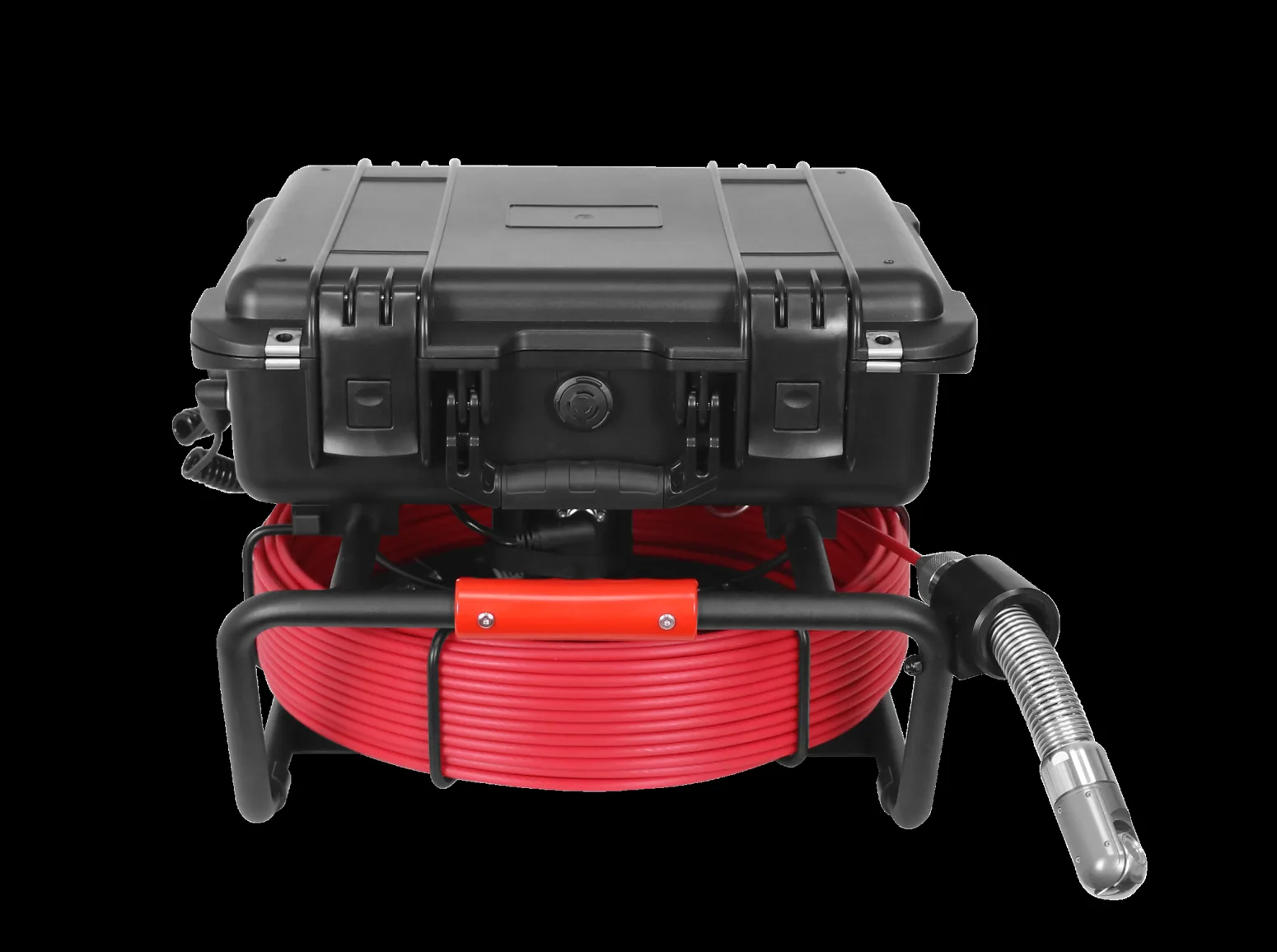

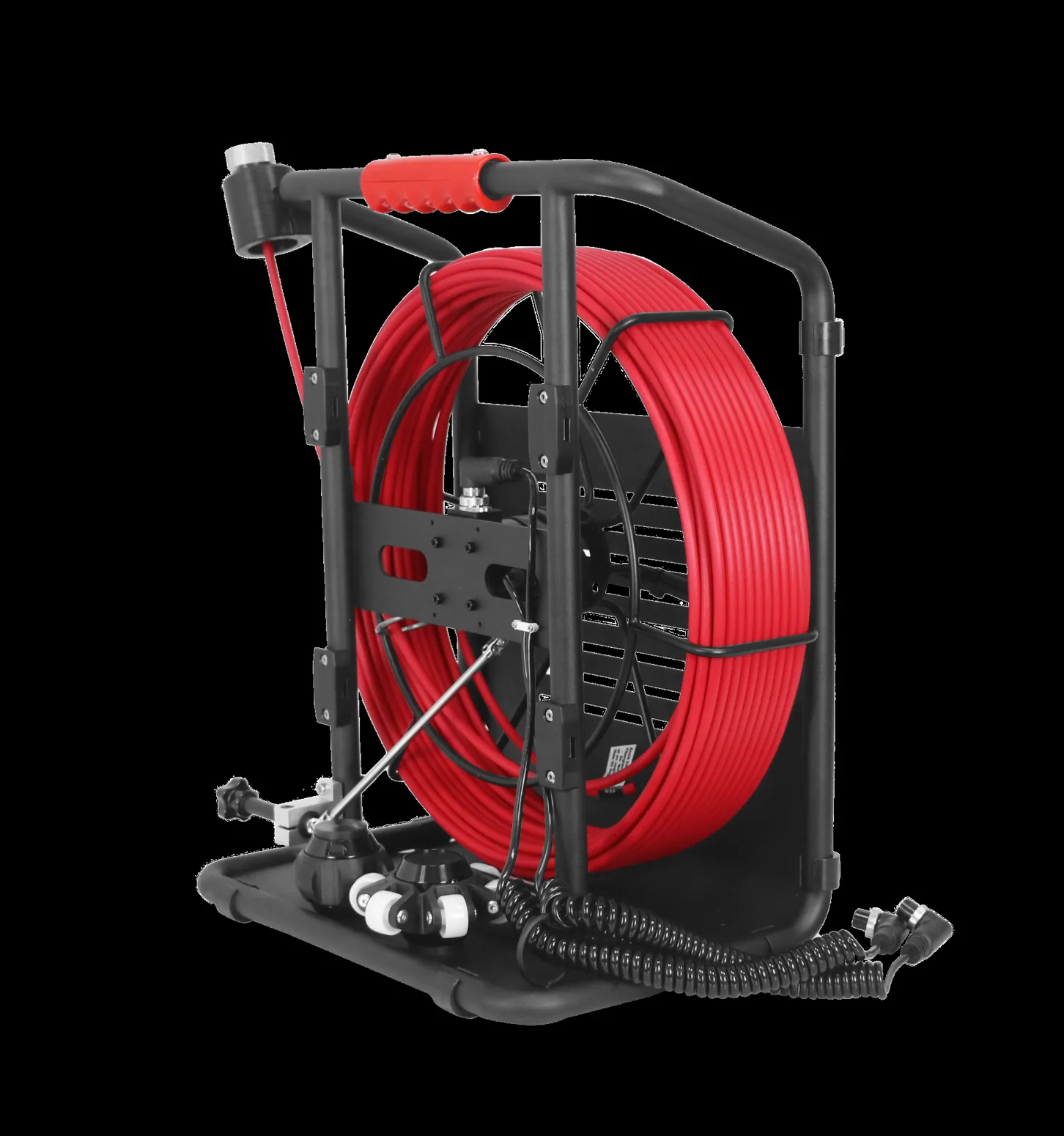

Your supplied images show the rugged display case, red cable reel, rear roller frame, cable connection and mounting hardware. These are documented components, but the image alone does not establish a particular camera diameter.
Request a V13 Quote →
Before ordering
Common questions
Do V13 variants share the same system?
Per supplier communication, the variants in your supplied range share the operating system and reel platform. Confirm camera head connector, cable reel combination and accessories per model before order.
Are V13 cameras all interchangeable?
Not established. Shared platform does not prove physical or electrical interchangeability. Ask for a written compatibility chart.
Is a 512 Hz locator included?
This has not been verified for the displayed V13 configuration. Confirm before pricing.
Are product videos included?
No videos are embedded in this draft.
